Fuchuan FC-450b New High-Speed CNC Stranding Machine with 4kw Motor Automatic Winding & Wire Laying 2000kg Load Capacity

Name: Fuchuan FC-450b New High-Speed CNC Stranding Machine with 4kw Motor Automatic Winding & Wire Laying 2000kg Load Capacity
Brand: Kunshan Fuchuan Electrical and Mechanical Co.,ltd
SKU: FC-653D
Price: 27,915.00 USD
Availability: InStock

جميع المنتجات

الأسلاك النحاسية آلة الربط
(116)

سلك اللف آلة
(43)

مزدوجة تويست آلة بونشينغ
(88)

سلك آلة الربط
(56)

الأسلاك النحاسية آلة التواء
(39)

كابل آلة التواء
(27)

سلك آلة الطارد
(66)

pvc بثق آلة
(40)

آلة تويست واحدة
(14)

كابل آلة البثق
(27)

سلك آلة الصلب
(31)

أفضل المنتجات

19 قطعة من آلة تجميع أسلاك النيكل

عكاس مزدوج لترابط الموصلات ووضع الكابلات

Touch Screen Automatic Wire Twister For Enamelled Wire / Bare Copper Wires

شهادة

الصين Kunshan Fuchuan Electrical and Mechanical Co.,ltd الشهادات

زبون مراجعة

The machine from Fuchuan is with high quality.We have confidence of its machine. And we have cooperation for many years. No 1 machine in China.

—— Mr Robert Klimko

ابن دردش الآن

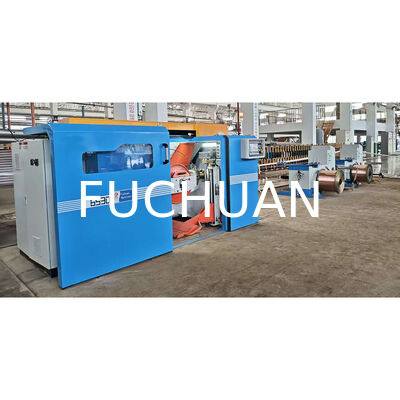

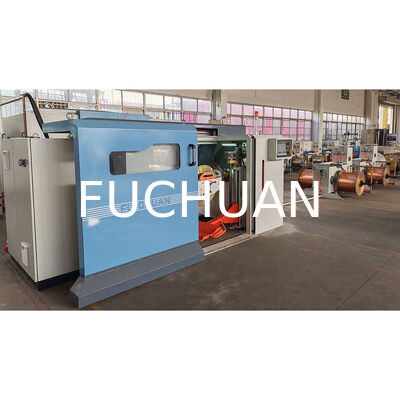

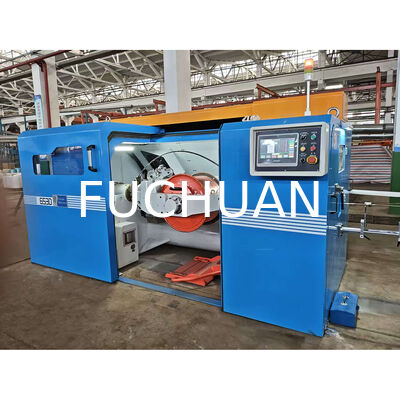

Fuchuan FC-450b New High-Speed CNC Stranding Machine with 4kw Motor Automatic Winding & Wire Laying 2000kg Load Capacity

صورة كبيرة : Fuchuan FC-450b New High-Speed CNC Stranding Machine with 4kw Motor Automatic Winding & Wire Laying 2000kg Load Capacity

تفاصيل المنتج:

مكان المنشأ:	الصين كونشان
اسم العلامة التجارية:	FUCHUAN
إصدار الشهادات:	CE
رقم الموديل:	FC-653D

شروط الدفع والشحن:

الحد الأدنى لكمية:	1 مجموعة
الأسعار:	negotiable
تفاصيل التغليف:	معبأة ببساطة
وقت التسليم:	45 يوما
شروط الدفع:	تي / تي، خطاب الاعتماد
القدرة على العرض:	200sets/شهر

اتصل

Fuchuan FC-450b New High-Speed CNC Stranding Machine with 4kw Motor Automatic Winding & Wire Laying 2000kg Load Capacity

وصف

مواصفات البكرة:	φ500mm-φ630	الجهد االكهربى:	380 فولت
سلك النحاس ضياء:	0.12 ملم - 0.68 ملم	يقذف:	يمكن أن تكون قابلة للتعديل
سرعة الدوران القصوى:	3000 (6000 طن في الدقيقة)	لون:	السماء الزرقاء / التفاح الأخضر
ينهي:	تقارير وطحن	وضع التشغيل:	تشغيل شاشة اللمس
اسم آخر:	ماكينة تثقيب النحاس	تناول البكرة:	قطر 300 مم / 400 مم / 450 مم
إبراز:	high-speed CNC stranding machine,automatic winding copper wire machine,2000kg load capacity wire laying machine , automatic winding copper wire machine , 2000kg load capacity wire laying machine

Basic Info.

Model NO.

FC-654D

Condition

New

Certification

FDA, RoHS, ISO, CE

Warranty

24 Months

Automatic Grade

Automatic

Mould Life

<300,000 Shots

Type

High-speed Stranding Machine

Bow

Carbon Fiber/Stainless Steel

Color

Customized

Etd

30days

Max Speed

2600rpm

Pay-off Speed

200m/Min

Power

15kw

Transport Package

Wooden Box

Specification

4500kg

Trademark

FCJD

Origin

Kunshan, China

HS Code

8479400000

Production Capacity

200 Sets Per Month

Product Description

high-performance bunching machine

Our high-performance bunching machine is engineered for durability, efficiency in cable & wire producing projects.

Designed with advanced technology and robust materials, this bunching machine ensures high speed, smooth operation.

Suitable for stranding conductors such as bare copper wire, tinned wire and aluminum alloy wire, which are used in

automotive wire, electronic wire and power cord.

Specification

Features

1.IoT access: Ethernet ports are reserved for loT access, which can display rotation speed, stranding specifications, wire speed, output, equipement maintenance, etc.
2. Carbon Fibre bow: Adopting high quality carbon fibre bow, single bow design, light weight, energy savingmore than 25%.

3. Electronic control pitch: can set the pitch value on the PLC panel.

4. Take-up tension control: AC frequency conversion motor drives take-up.

Technical Specifications

(Custom configurations available upon request.)

Model	FC-652D	FC-653D	FC-654D	FC-802C	FC-803C
Wire dia. (mm)	Φ0.12-0.45	Φ0.12-0.68	Φ0.12-0.68	Φ0.15-1.35	Φ0.15-1.35
Cross section (mm2 )	0.35-4.0	0.35-6.0	0.35-6.0	1.0-16.0	1.0-16.0
Pitch (mm)	10-100	10-100	6.5-75	20-160	20-160
Pitch adjusting method	PLC control	PLC control	Manual	PLC control	PLC control
Spool size(mm)	Φ500-630	Φ500-630	Φ500-630	Φ630-800	Φ630-800
Max speed (rpm)	2600	2600	2600	1800	1800
Total power	15KW	15KW	15KW	18.5KW	18.5KW
Stranding direction	S/Z	S/Z	S/Z	S/Z	S/Z
Overall Size(mm)	365020002200			460021002200

Drawings & Dimensions

Detailed CAD drawings and dimensional diagrams are available for download here or upon inquiry. Our engineering

team can provide tailored designs to meet specific project requirements.

After Sales Service

Standard Warranty: 24 months.
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.

Company Profile

Kunshan Fuchuan Electrical & Mechanical Co., Ltd.

Kunshan Fuchuan Electrical & Mechanical Co., Ltd. is a leading Chinese manufacturer of cable & wire machinery with over 20

years of expertise. Certified with ISO 9001, CE, and GOST, we export to 100+ countries, offering reliable machinery backed by

R&D innovation and strict quality control.

Why Choose Us?

Other Products

OEM/ODM capabilities
Competitive pricing & bulk discounts
Fast shipping & customs clearance support
Turnkey project solutions

Stranding machine

Back-twist bunching machine
Signle twist bunching machine

Torsion-free cable-laying machine

Pay-off machine

Extruding machine

Rewinding machine

FAQ

Q: What's the lead time for orders?
A: Standard models ship in 15–30 days; customized units require 45–60 days.

Q: Do you provide after-sales service overseas?
A: Yes, we provide online service and if the customer needed, we can send our engineer to customer's site.

Q: Can I request a customized machine?
A: Absolutely! We accept OEM and ODM.

Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).

Q: How do I place an order?
A: Contact us via email/phone for a quote, then confirm with a PO.
