High-Speed Double Twist Bunching Machine for Copper Wire 300/400/450mm Power/Electrical Cable Making Line

Name: High-Speed Double Twist Bunching Machine for Copper Wire 300/400/450mm Power/Electrical Cable Making Line
Brand: Kunshan Fuchuan Electrical and Mechanical Co.,ltd
SKU: FC-300B
Price: 27,915.00 USD
Availability: InStock

جميع المنتجات

الأسلاك النحاسية آلة الربط
(109)

سلك اللف آلة
(43)

مزدوجة تويست آلة بونشينغ
(88)

سلك آلة الربط
(56)

الأسلاك النحاسية آلة التواء
(39)

كابل آلة التواء
(27)

سلك آلة الطارد
(66)

pvc بثق آلة
(40)

آلة تويست واحدة
(14)

كابل آلة البثق
(27)

سلك آلة الصلب
(31)

أفضل المنتجات

19 قطعة من آلة تجميع أسلاك النيكل

عكاس مزدوج لترابط الموصلات ووضع الكابلات

Touch Screen Automatic Wire Twister For Enamelled Wire / Bare Copper Wires

شهادة

الصين Kunshan Fuchuan Electrical and Mechanical Co.,ltd الشهادات

زبون مراجعة

The machine from Fuchuan is with high quality.We have confidence of its machine. And we have cooperation for many years. No 1 machine in China.

—— Mr Robert Klimko

ابن دردش الآن

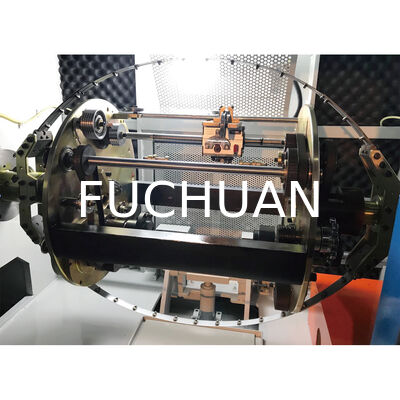

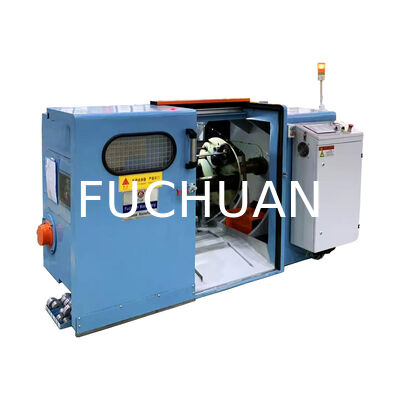

High-Speed Double Twist Bunching Machine for Copper Wire 300/400/450mm Power/Electrical Cable Making Line

صورة كبيرة : High-Speed Double Twist Bunching Machine for Copper Wire 300/400/450mm Power/Electrical Cable Making Line

تفاصيل المنتج:

مكان المنشأ:	الصين كونشان
اسم العلامة التجارية:	FUCHUAN
إصدار الشهادات:	CE
رقم الموديل:	FC-300B

شروط الدفع والشحن:

الحد الأدنى لكمية:	1 مجموعة
الأسعار:	negotiable
تفاصيل التغليف:	معبأة ببساطة
وقت التسليم:	45 يوما
شروط الدفع:	تي / تي، خطاب الاعتماد
القدرة على العرض:	200sets/شهر

اتصل

High-Speed Double Twist Bunching Machine for Copper Wire 300/400/450mm Power/Electrical Cable Making Line

وصف

مواصفات البكرة:	φ250mm-φ300	الجهد االكهربى:	380 فولت
سلك النحاس ضياء:	0.04 ملم - 0.28 ملم	يقذف:	يمكن أن تكون قابلة للتعديل
سرعة الدوران القصوى:	3500 (7000 طن في الدقيقة)	لون:	السماء الزرقاء / التفاح الأخضر
ينهي:	تقارير وطحن	وضع التشغيل:	تشغيل شاشة اللمس
اسم آخر:	ماكينة تثقيب النحاس	تناول البكرة:	القطر 300 ملم
إبراز:	high-speed copper wire bunching machine,double twist cable making machine,electrical cable bunching machine 450mm , double twist cable making machine , electrical cable bunching machine 450mm

Basic Info.

Model NO.

FC-300B

Condition

New

Certification

FDA, RoHS, ISO, CE

Warranty

24 Months

Automatic Grade

Automatic

Mould Life

<300,000 Shots

Type

High-speed Stranding Machine

Model No.

FC-300b

Bow

Carbon Fiber/Stainless Steel

Color

Customized

Etd

30days

Max Speed

3500rpm

Power

4kw

Transport Package

Wooden Box

Specification

1000kg

Trademark

FCJD

Origin

Kunshan, China

HS Code

8479400000

Production Capacity

200 Sets Per Month

Product Description

Series of Model B Ultra Fine Wire High Speed Bunching Machine

Our high-performance bunching machine is engineered for durability, efficiency in cable & wire producing

projects. Designed with advanced technology and robust materials, this bunching machine ensures high

speed, smooth operation. It is suitable for stranding of extremely ultra fine conductors (alloy wire, tin-plated

wire, silver-plated wire, enameled wire, etc. with seven or more strands) in aerospace, medical devices,

mobile phones, laptops, etc.

Specification

Technical Specifications

(Custom configurations available upon request.)

Model	FC-250B	FC-300B	FC-400B	FC-450B
Wire dia. (mm)	Φ0.03-0.18	Φ0.04-0.28	Φ0.05-0.32	Φ0.05-0.32
Cross section (mm2 )	0.0049-0.3	0.0088-0.45	0.0137-1.0	0.0137-1.0
Pitch (mm)	0.8-10.8	1.6-21.6	3.1-33.3	3.1-33.3
Take-up Spool size (mm)	Φ200-Φ250	Φ250-Φ300	Φ300-Φ400	Φ300-Φ450
Main motor power	4.0KW	4.0KW	4.0KW	4.0KW
Inverter Power	3.7KW	3.7KW	3.7KW	3.7KW
Max speed (rpm)	4000	3500	3000	3000
Stranding direction	S/Z	S/Z	S/Z	S/Z
Magnetic power clutch	0.3kgf	0.6kgf	0.6kgf	0.6kgf
Tension control	PLC+Magnetic powder clutch
Protection	Automatic brake on wire break by electromagnetic brake

Features

1. Ethernet port is reserved for IoT access,

which can display the speed, stranding details,

line speed, equipment maintenance, etc.

2. PLC control+Magnetic powder clutch,

perfectly ensure the constant tension from

empty to full spool.

3. With bearing type polished rod traversing,

traversing width and lay length is adjustable.

Drawings & Dimensions

Detailed CAD drawings and dimensional diagrams are available for download here or upon inquiry. Our engineering team

can provide tailored designs to meet specific project requirements.

After Sales Service

Standard Warranty: 24 months.
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.

Company Profile

Kunshan Fuchuan Electrical & Mechanical Co., Ltd.

Kunshan Fuchuan Electrical & Mechanical Co., Ltd. is a leading Chinese manufacturer of cable & wire machinery with

over 20 years of expertise. Certified with ISO 9001, CE, and GOST, we export to 100+ countries, offering reliable

machinery backed by R&D innovation and strict quality control.

Why Choose Us?

Other Products

OEM/ODM capabilities
Competitive pricing & bulk discounts
Fast shipping & customs clearance support
Turnkey project solutions

Stranding machine

Back-twist bunching machine
Single twist bunching machine

Torsion-free cable-laying machine

Pay-off machine

Extruding machine

Rewinding machine

Certifications

Fuchuan has obtained dozens of certifications and certificates, and hundreds of patents.

With ISO9001

FAQ

Q: What's the lead time for orders?
A: Standard models ship in 15–30 days; customized units require 60–90 days.

Q: Do you provide after-sales service overseas?
A: Yes, we provide online service and if the customer needed, we can send our engineer to customer's site.

Q: Can I request a customized machine?
A: Absolutely! We accept OEM and ODM.

Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).

Q: How do I place an order?
A: Contact us via email/phone for a quote, then confirm with a PO.
