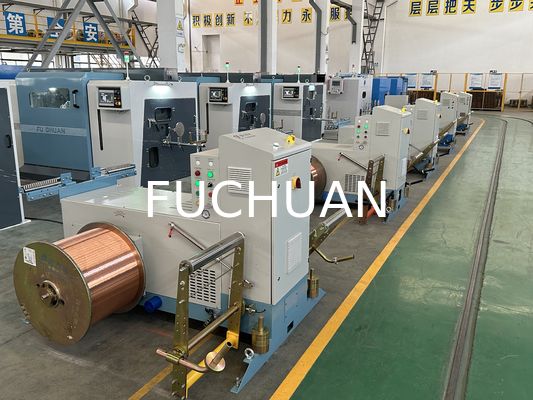

High Speed Tinned Wire Stranding Copper Wire 630 Double Twist Bunching Machine from China Fuchuan

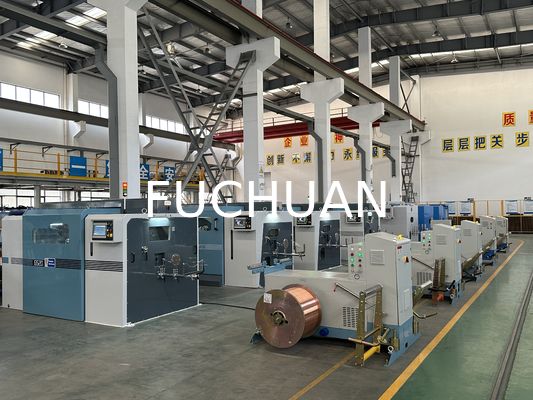

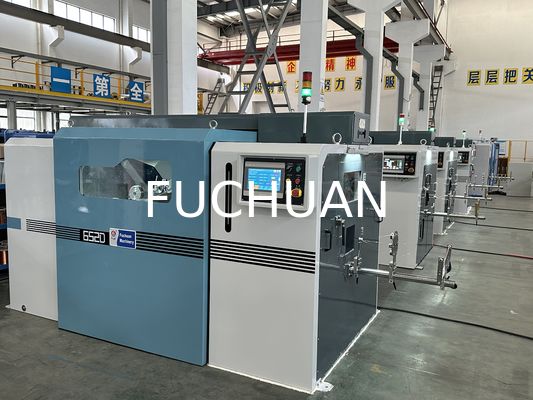

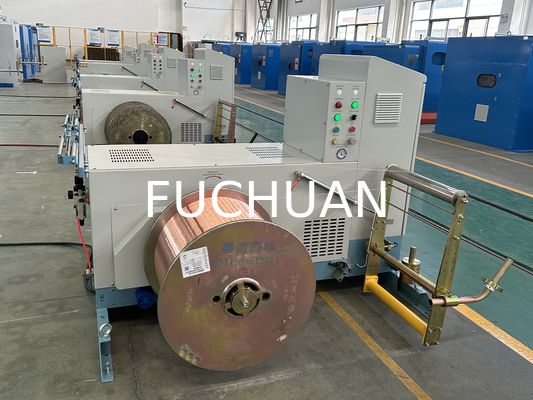

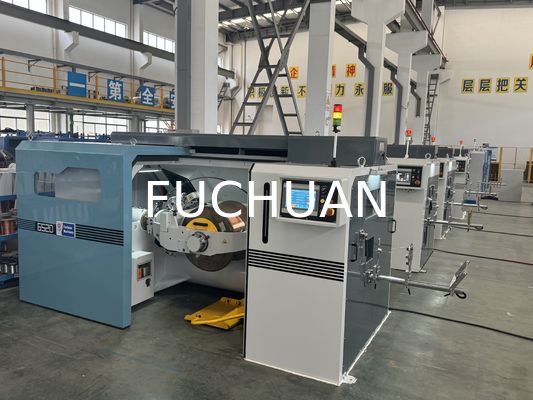

صورة كبيرة : High Speed Tinned Wire Stranding Copper Wire 630 Double Twist Bunching Machine from China Fuchuan

تفاصيل المنتج:

مكان المنشأ:	الصين كونشان
اسم العلامة التجارية:	FUCHUAN
إصدار الشهادات:	CE
رقم الموديل:	FC-653D

شروط الدفع والشحن:

الحد الأدنى لكمية:	1 مجموعة
الأسعار:	negotiable
تفاصيل التغليف:	التعبئة البسيطة
وقت التسليم:	45 يوما
شروط الدفع:	تي / تي، خطاب الاعتماد
القدرة على العرض:	500 مجموعة في الشهر

اتصل

High Speed Tinned Wire Stranding Copper Wire 630 Double Twist Bunching Machine from China Fuchuan

وصف

الاستخدام:	اللف، التجديل، صنع 7 جدائل أو كابلات متعددة النواة	لون:	وفقا لمتطلبات العميل
الجهد االكهربى:	380V 50/60Hz	الاسم:	أفضل سعر آلة تجميع اللف المزدوج الأوتوماتيكية، آلة تجميع اللف المزدوج، إنتاج اللف المزدوج الأوتوماتي
وزن:	1000 ~ 3000 كجم	مادة:	النحاس والألمنيوم
إبراز:	high speed tinned wire stranding machine,double twist bunching copper wire machine,630 double twist stranding machine , double twist bunching copper wire machine , 630 double twist stranding machine

Product Description

high-performance bunching machine

Our high-performance bunching machine is engineered for durability, efficiency in cable & wire producing projects. Designed with advanced technology and robust materials, this bunching machine ensures high speed, smooth operation. Suitable for stranding conductors such as bare copper wire, tinned wire and aluminum alloy wire, which are used in automotive wire, electronic wire and power cord.

Specification

Features

1.IoT access: Ethernet ports are reserved for loT access, which can display rotation speed, stranding specifications, wire speed, output, equipement maintenance, etc.

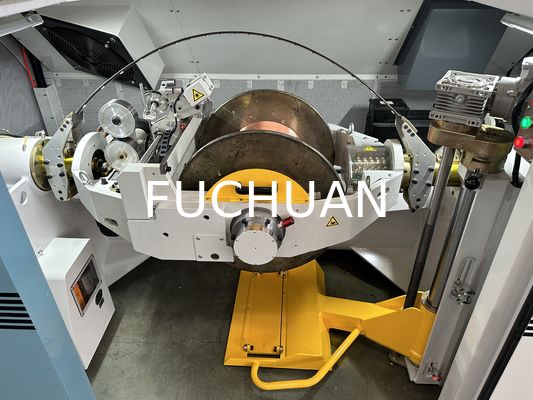

2. Carbon Fibre bow: Adopting high quality carbon fibre bow, single bow design, light weight, energy savingmore than 25%.

3. Electronic control pitch: can set the pitch value on the PLC panel.

4. Take-up tension control: AC frequency conversion motor drives take-up.

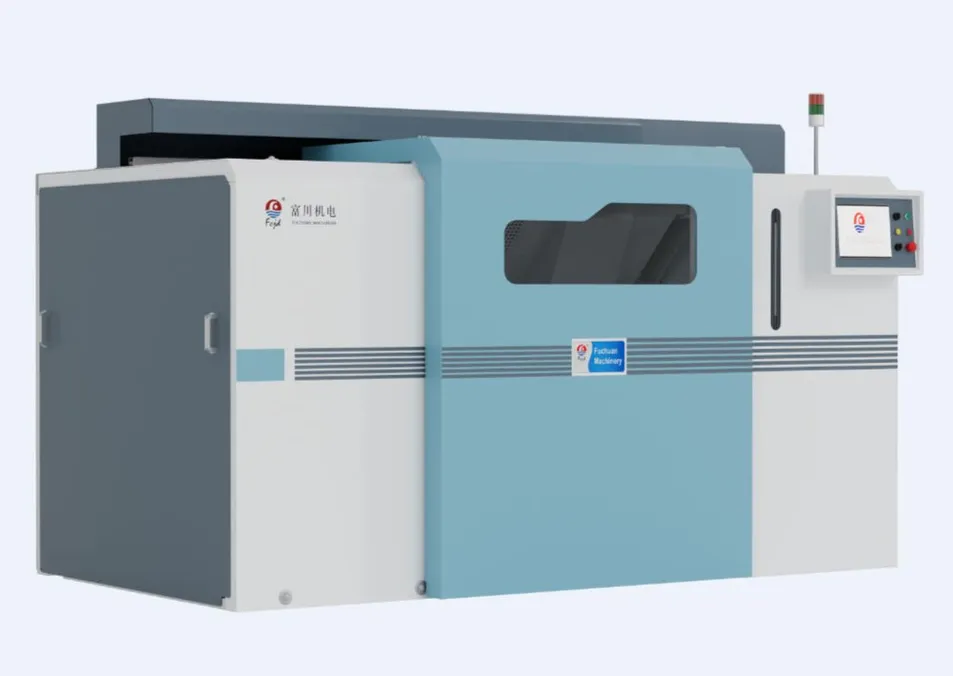

High Speed Tinned Wire Stranding Copper Wire 630 Double Twist Bunching Machine from China Fuchuan 0

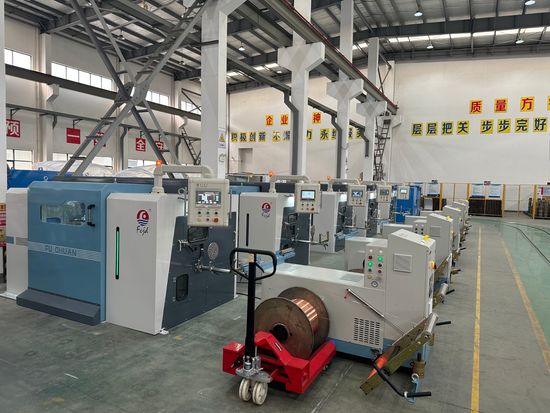

High Speed Tinned Wire Stranding Copper Wire 630 Double Twist Bunching Machine from China Fuchuan 1

Features

5. Internal precision traverse: stepper motor + precision ballscrew traverse, through PLC precise calculation, guarantee the wiring accuracy.
6. Laser detection (optional): Suitable for high demanding stranding production situations, automatic detection of rows of wires to the edge.
7. Electric lifting system: self-locking, high positioning accuracy, easy to operate to load and unload the spool.

Technical Specifications

(Custom configurations available upon request.)

Model	FC-652D	FC-653D	FC-654D	FC-802C	FC-803C
Wire dia. (mm)	Φ0.12-0.45	Φ0.12-0.68	Φ0.12-0.68	Φ0.15-1.35	Φ0.15-1.35
Cross section (mm2 )	0.35-4.0	0.35-6.0	0.35-6.0	1.0-16.0	1.0-16.0
Pitch (mm)	10-100	10-100	6.5-75	20-160	20-160
Pitch adjusting method	PLC control	PLC control	Manual	PLC control	PLC control
Spool size(mm)	Φ500-630	Φ500-630	Φ500-630	Φ630-800	Φ630-800
Max speed (rpm)	2600	2600	2600	1800	1800
Total power	15KW	15KW	15KW	18.5KW	18.5KW
Stranding direction	S/Z	S/Z	S/Z	S/Z	S/Z
Overall Size(mm)	365020002200			460021002200

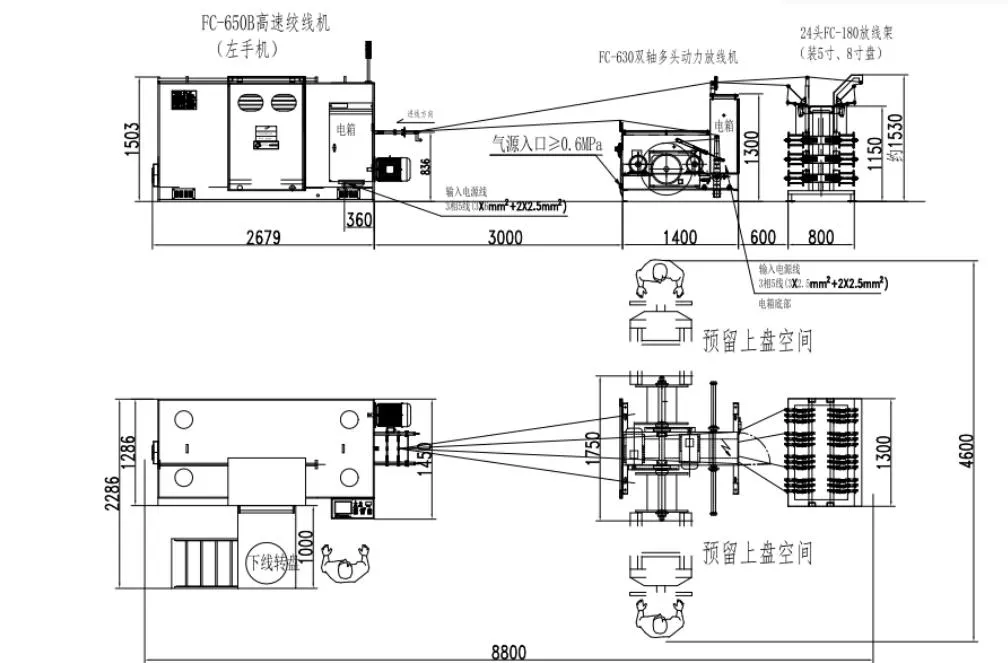

Drawings & Dimensions

Detailed CAD drawings and dimensional diagrams are available for download here or upon inquiry. Our engineering team can provide tailored designs to meet specific project requirements.

High Speed Tinned Wire Stranding Copper Wire 630 Double Twist Bunching Machine from China Fuchuan 2

After Sales Service

Standard Warranty: 24 months.
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.

Company Profile

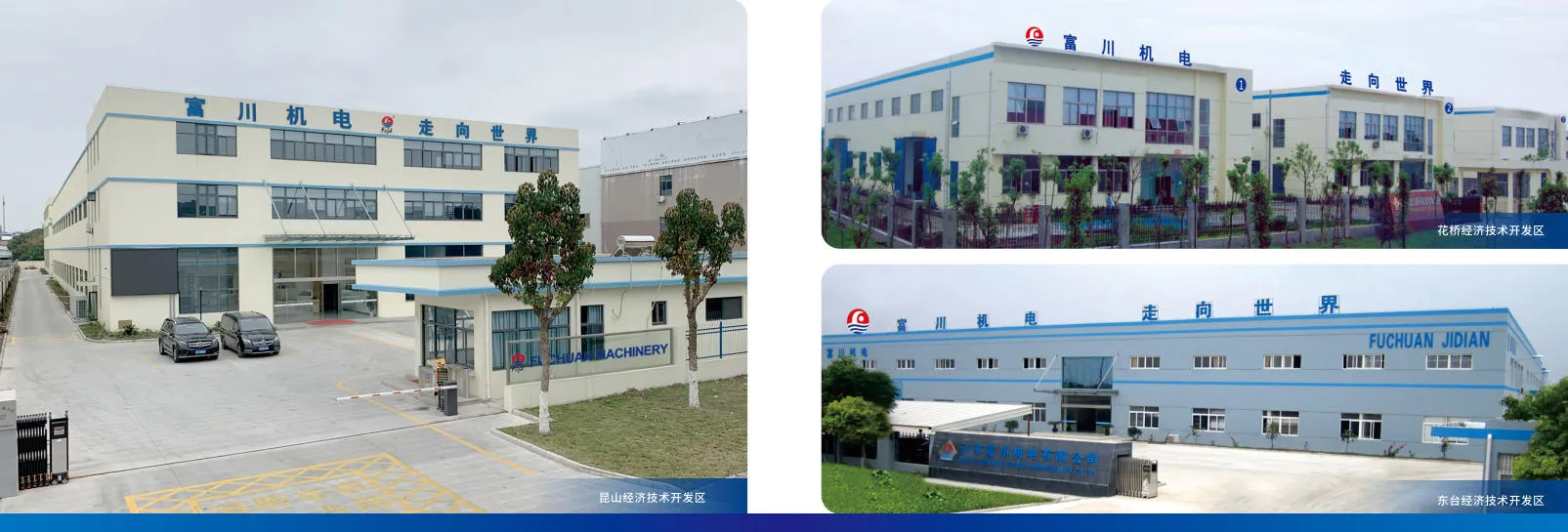

High Speed Tinned Wire Stranding Copper Wire 630 Double Twist Bunching Machine from China Fuchuan 3

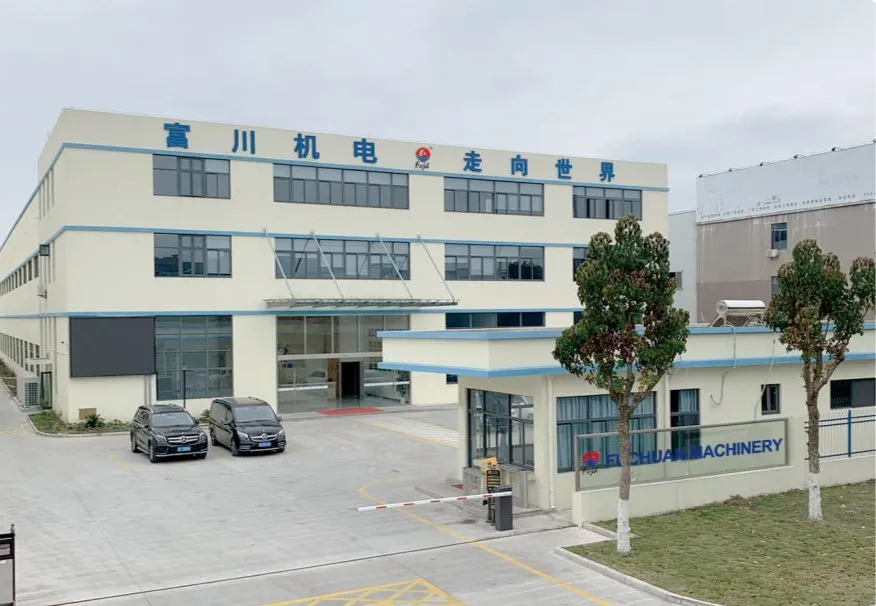

Kunshan Fuchuan Electrical & Mechanical Co., Ltd.

Kunshan Fuchuan Electrical & Mechanical Co., Ltd. is a leading Chinese manufacturer of cable & wire machinery with over 20 years of expertise. Certified with ISO 9001, CE, and GOST, we export to 100+ countries, offering reliable machinery backed by R&D innovation and strict quality control.

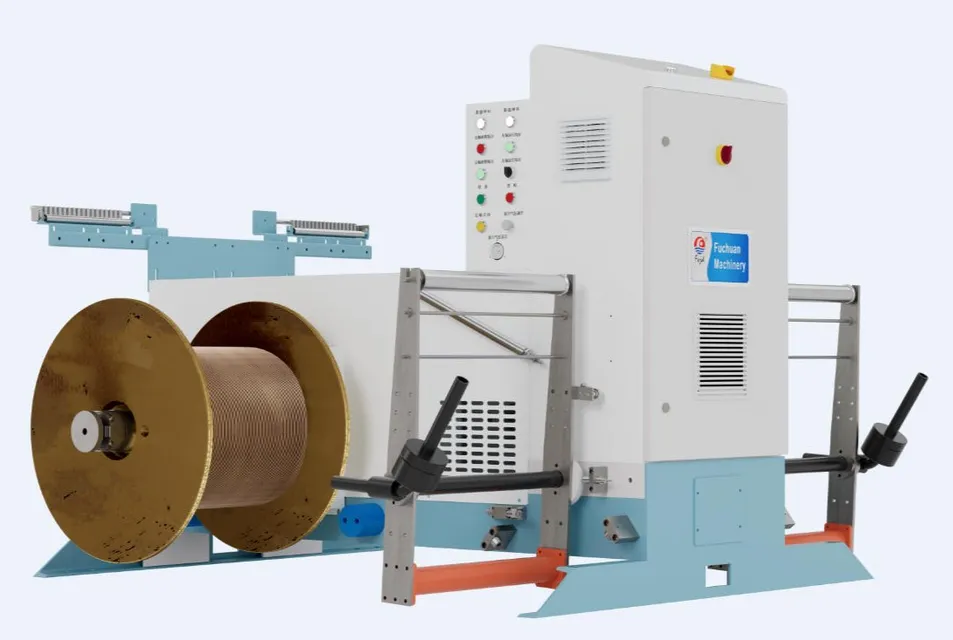

High Speed Tinned Wire Stranding Copper Wire 630 Double Twist Bunching Machine from China Fuchuan 4

High Speed Tinned Wire Stranding Copper Wire 630 Double Twist Bunching Machine from China Fuchuan 5

Why Choose Us?

Other Products

OEM/ODM capabilities
Competitive pricing & bulk discounts
Fast shipping & customs clearance support
Turnkey project solutions

Stranding machine

Back-twist bunching machine
Signle twist bunching machine

Torsion-free cable-laying machine

Pay-off machine

Extruding machine

Rewinding machine

FAQ

Q: What's the lead time for orders?
A: Standard models ship in 15–30 days; customized units require 30–45 days.

Q: Do you provide after-sales service overseas?
A: Yes, we provide online service and if the customer needed, we can send our engineer to customer's site.

Q: Can I request a customized machine?
A: Absolutely! We accept OEM and ODM.

Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).

Q: How do I place an order?
A: Contact us via email/phone for a quote, then confirm with a PO.
