تفاصيل المنتج:
|
| مادة: | PVC، PP، PE، SR-PVC وغيرها من البلاستيك | المسمار ديا: | 70 |
|---|---|---|---|
| نوع سلك التغذية: | 500-630 سداد نشط أو سداد برميل لوت | احالة السلطة: | 5.5 كيلو واط |
| إخراج البثق: | 170 كجم / ساعة | سرعة المخرج: | 0-800 م/دقيقة |
| لون: | السماء الزرقاء | ||
| إبراز: | آلة طحن أسلاك PVC التلقائية,آلة طحن PVC 70mm,70mm PVC Extrusion Machine |
||
Fuchuan PVC Extrusion Machine For Automatic Wire With Screw Dia 70mm Wire Dia 1-6mm
Quick detail :
Applied to PVC,PP,PE,SR-PVC and other plastic material for the automobile wire,insulated jacketed.
Specification:

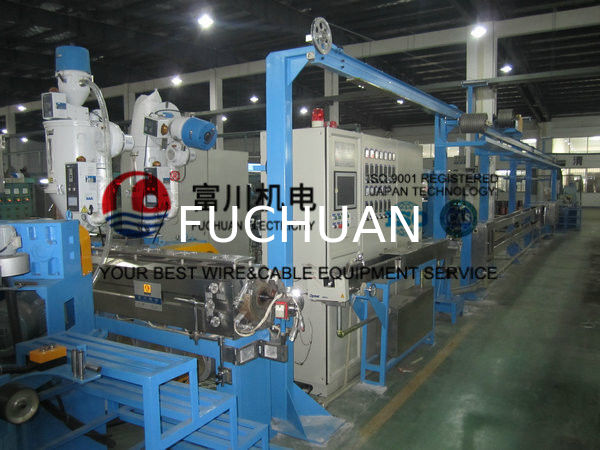

This machine contains:lut barrel pay off machine,straighten,main machine,injection machine,control case,tank,double wheel capstan,accumulator,double shaft take up and other equipments.The chosen equipments:copper wire preheater,printer,OD measuring instrument,spark tester and PLC control.
| Equipment type | 60+35 | 70+35-1 | 80+35 |
| Pay off type | 500-630active pay off or lut barrel pay off | ||
| Screw dia(mm) | 60 | 70 | 80 |
| screw ratio | 26:1 | 26:1 | 26:1 |
| extrusion output(kg/h) | 120 | 170 | 240 |
| main machine power(kw) | 22 | 30 | 45 |
| wire specification(mm) | Φ0.8-5.0 | Φ1.0-6.0 | Φ1.5-8 |
| cooling device | Double layer model U | Double layer model U | Double layer model U |
| max wire accumulator length(mm) | 300 | 300 | 300 |
| hauling power(kw) | 3.7 | 5.5 | 5.5 |
| outlet speed(m/min) | 0-800 | 0-800 | 0-1000 |
| take up type | 1246automatic coiling machine,The plum blossom falls barrel machine,shaft type | ||
Other information:
active pay off or passive pay off
Terms of payment:
FOB Shanghai / Ningbo
Payment terms:
30% down payment,70% before shipment
Delivery time:
45days after receive the downpayment
Origin:
China
Minimum order:
1set
Package:
With container
